Product brief introduction
Power Metal Strip® Battery Shunt Resistor With M4 Tapped Holes and Sn Plated Terminals,Very Low Value(50 μΩ,100μΩ,125μΩ and 250μΩ)
FEATUTES
·AEC-Q200 qualified
·Compliant with requirement #26 of NF-EN45545-2
·Hifh power 600 W at 85℃ bottom case temperature
Typical product parameters
| Item |
Min. |
Type. |
Max. |
| Product Name | - |
DWT008N03 | - |
| Package | - |

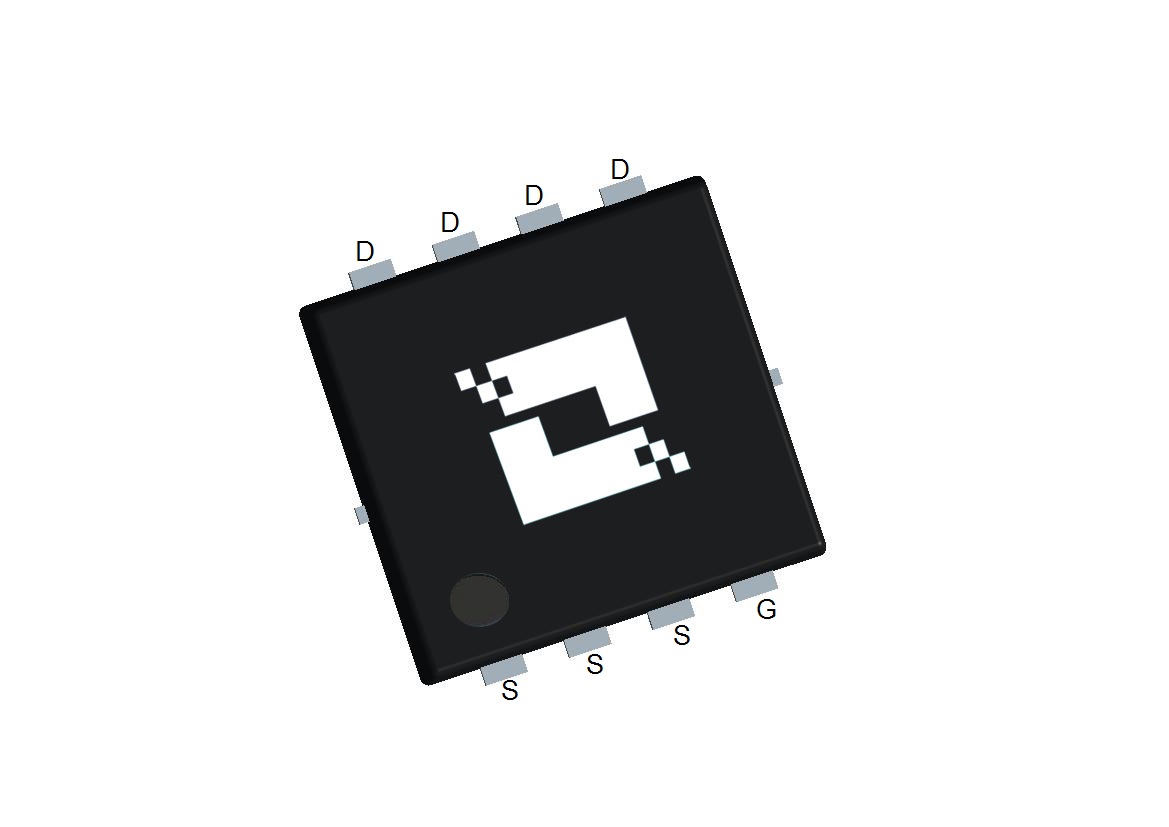

PDFN3X3 | - |
| VDS(V) | - |
30 | - |
| VGS(V) | - |
±20 | - |
| ID(A) | - |
56 | - |
| VTH(V) | 1.0 |
1.6 | 2.5 |
| RDS(on)at 10V(mΩ) | - |
6.3 | 8.5 |
| RDS(on)at 4.5V(mΩ) | - |
9 | 13 |
|
